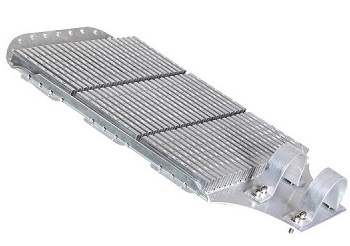

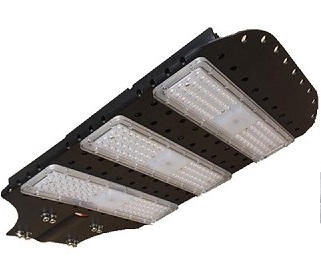

Street light 100W

Street Light



Product Feature

AC Integrated Driver, High Reliability, PF>0.98

  With OVP, OTP and OCP Protection

  LED SMD3030, CRI>80

10KV Surge Protection (Extenal SPD)

Can pass CE, RoHS,FCC,SAA,RCM Certification

CCT:3000K,4000K,6000K Options

Long life:30,000 hrs,3 years warranty

70*120°beam angle (with lens)

High efficiency, High Lumen LUX

  No UV or Infrared Radiation




Product Application

Express way, street, Residential areas

Industrial park ect..





Description:


 Light Source: SMD 3030 64pcs*3 ( 3 modules)
 Rated Power(W): 100W or 120W±5% @230VAC
 Input Voltage(V): 200-265VAC
 PF: 0.98
 Led Driver: AC linear
 Surge Protection: 10KV Surge Protection(External SPD)
 Lumious(lm):       100lm/W±5%
 CCT(K): WW 3000K  NW 4000K  CW 6000K
 CRI: >80
 Beam Angle:           70*120°
 Material: Aluminum +PC Diffusion Cover
 Lifespan(H) >30,000
 Operation Temp. -33℃-55℃
 Weight  1.8kgs
 Dimension (mm):   271*480*75mm
