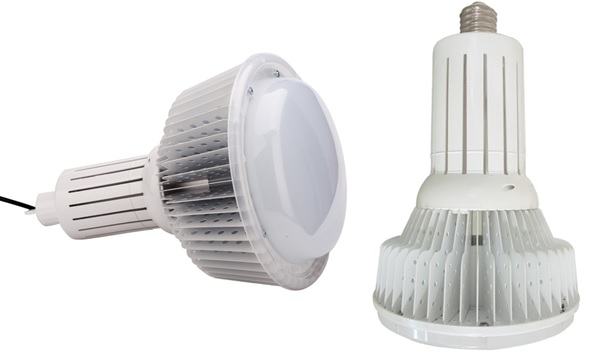

(Dimming) Highbay AHB 80W~180W
(Dimming) Highbay
| AHB-D200-80W | LED Lights: | SMD 3030 （Bridgelux） |
| Rated Power: | 80W | |
| Input Voltage: | AC200-270V | |
| PF: | 0.98 | |
| Surge Protection: | 6KV External Surge Protecter | |
| Lumen(lm): | 7600lm±5% | |
| CCT(K)： | 3000-5000K | |
| CRI： | >80 | |
| Materal: | Fin type Aluminum + PC diffuser cover | |
| Beam Angle: | 120° | |
| Waterproof: | Non | |
| Lifespan(H): | >40,000 H | |
| Work Temperature: | -30℃ ~ 55℃ | |
| Size | 203*355mm（E40 Base/ 203*373mm(HOOK) | |
| Packing: | 2 kg/pcs | |
| THD | <15% | |
| Certificate : | Pass CE Test Report | |
| AHB-D200-90W | LED Lights: | SMD 3030 （Bridgelux） |
| Rated Power: | 90W | |
| Input Voltage: | AC200-270V | |
| PF: | 0.98 | |
| Surge Protection: | 6KV External Surge Protecter | |
| Lumen(lm): | 9000lm±5% | |
| CCT(K)： | 3000-5000K | |
| CRI： | >80 | |
| Materal: | Fin type Aluminum + PC diffuser cover | |
| Beam Angle: | 120° | |
| Waterproof: | Non | |
| Lifespan(H): | >40,000 H | |
| Work Temperature: | -30℃ ~ 55℃ | |
| Size | 203*355mm（E40 Base/ 203*373mm(HOOK) | |
| Packing: | 2 kg/pcs | |
| THD | <15% | |
| Certificate : | Pass CE Test Report | |
| AHB-D300-160W | LED Lights: | SMD 3030 （Bridgelux） |
| Rated Power: | 160W | |
| Input Voltage: | AC200-270V | |
| PF: | 0.98 | |
| Surge Protection: | 6KV External Surge Protecter | |
| Lumen(lm): | 14000lm±5% | |
| CCT(K)： | 3000-5000K | |
| CRI： | >80 | |
| Materal: | Fin type Aluminum + PC diffuser cover | |
| Beam Angle: | 120° | |
| Waterproof: | Non | |
| Lifespan(H): | >40,000 H | |
| Work Temperature: | -30℃ ~ 55℃ | |
| Size | 292*404(E40L)/292*422mm(HOOK) | |
| Packing: | 3.3 kg/pcs | |
| THD | <15% | |
| Certificate : | Pass CE Test Report | |
| AHB-D300-180W | LED Lights: | SMD 3030 （Bridgelux） |
| Rated Power: | 180W | |
| Input Voltage: | AC200-270V | |
| PF: | 0.98 | |
| Surge Protection: | 6KV External Surge Protecter | |
| Lumen(lm): | 16000lm±5% | |
| CCT(K)： | 3000-5000K | |
| CRI： | >80 | |
| Materal: | Fin type Aluminum + PC diffuser cover | |
| Beam Angle: | 120° | |
| Waterproof: | Non | |
| Lifespan(H): | >40,000 H | |
| Work Temperature: | -30℃ ~ 55℃ | |
| Size | 292*404(E40L)/292*422mm(HOOK) | |
| Packing: | 3.3 kg/pcs | |
| THD | <15% | |
| Certificate : | Pass CE Test Report |
